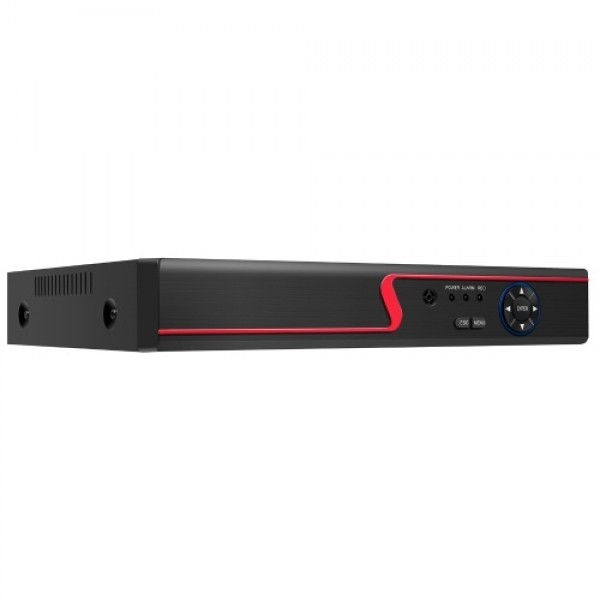

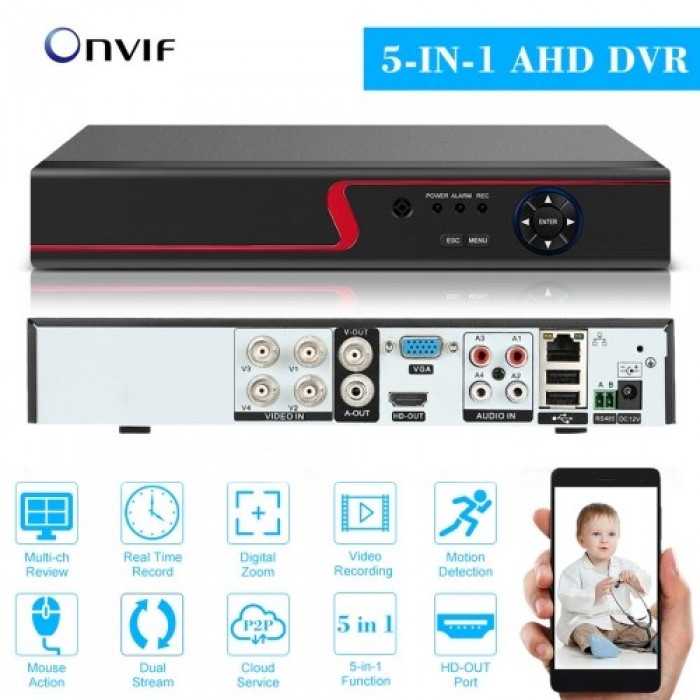

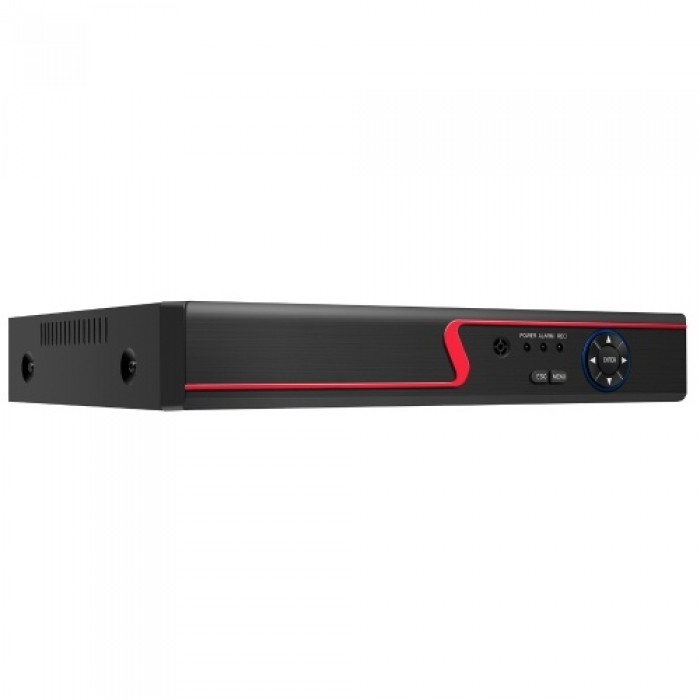

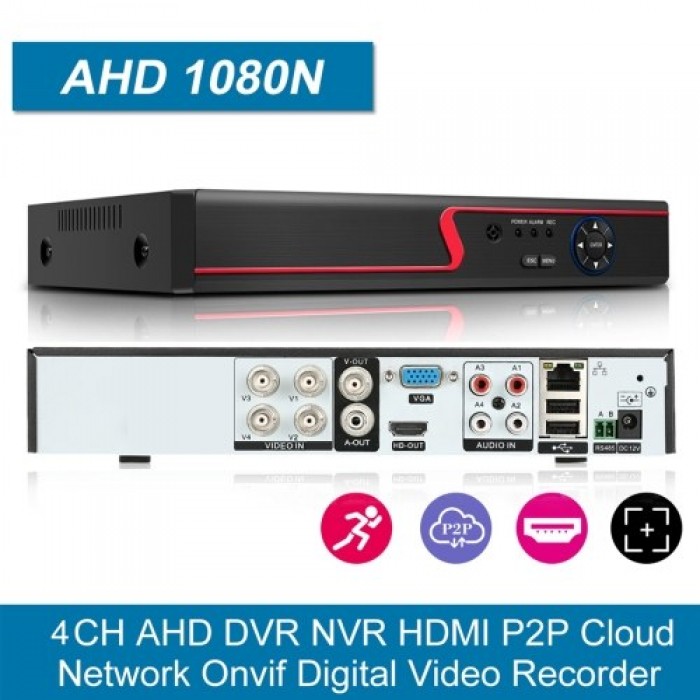

4CH 1080P Full High Definition Hybrid AHD/Analog/TVI/CVI/ CCTV Digital Video Recorder DVR for Security Surveillance System, No H

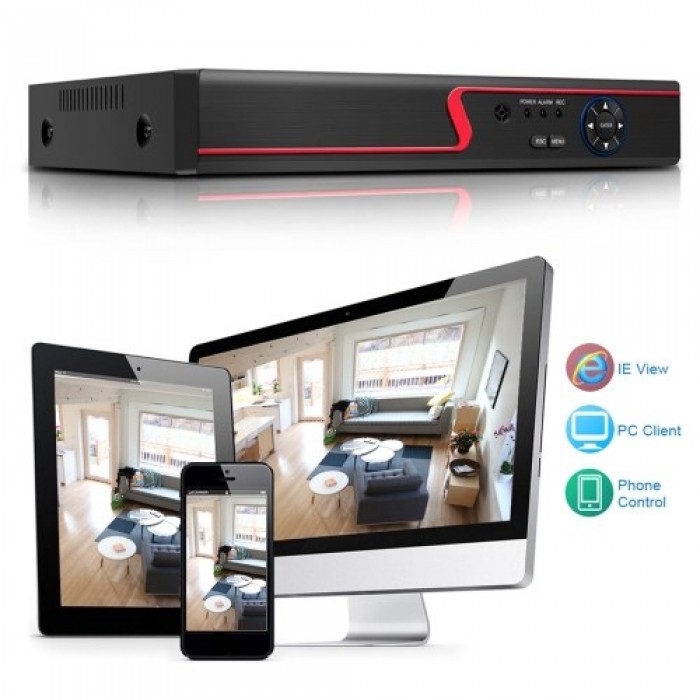

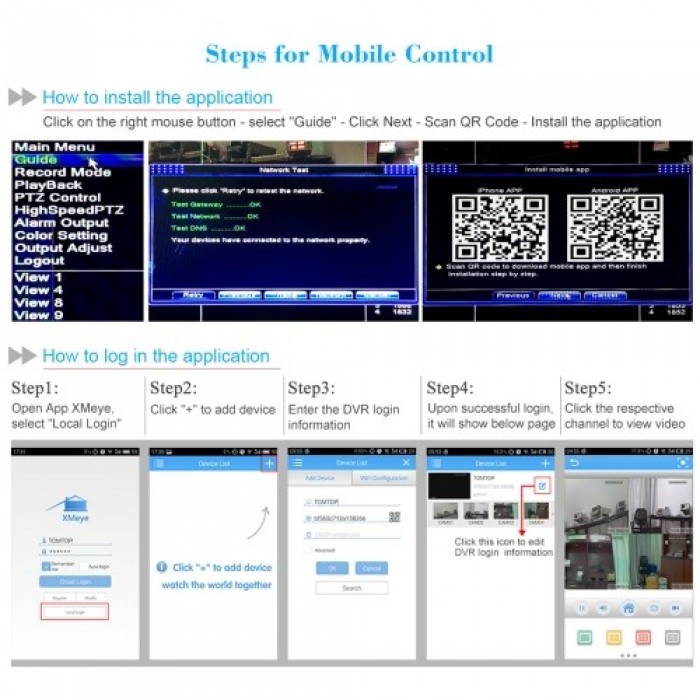

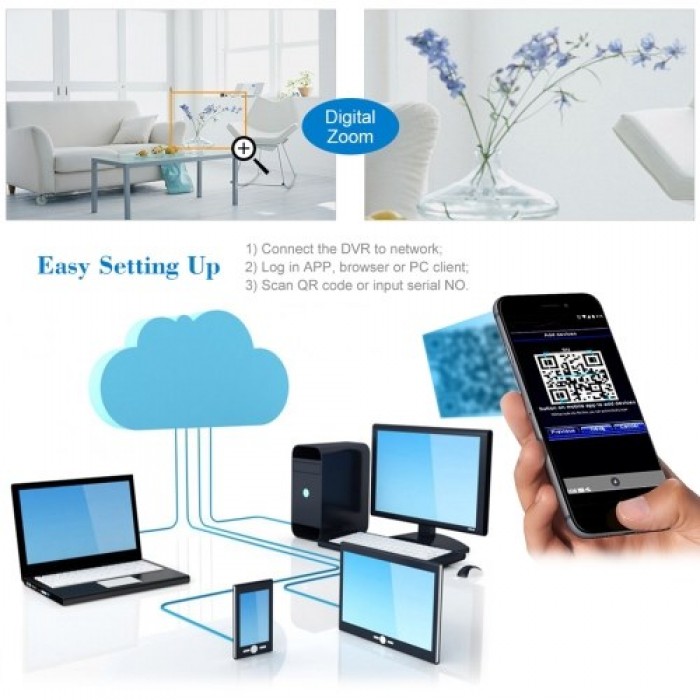

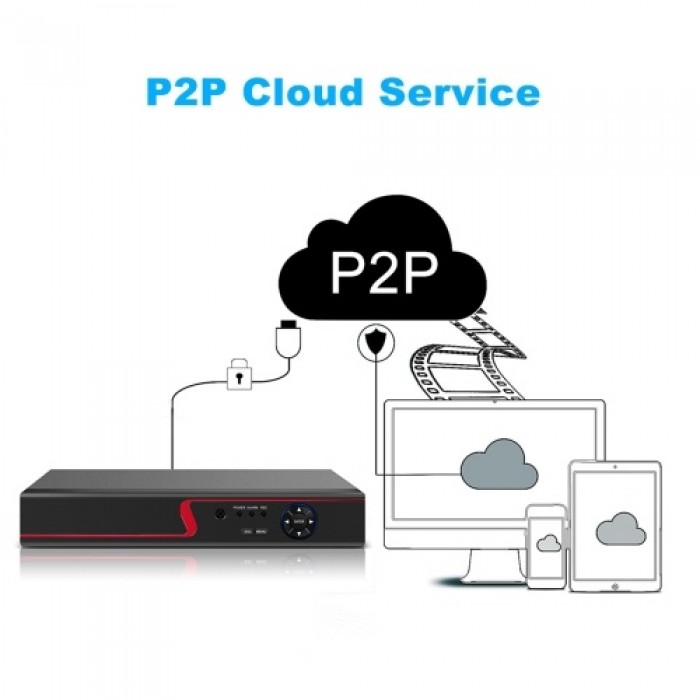

Description: This 4ch 1080p/D1 network DVR video recorder features H.265+ video compression, P2P cloud function, supporting android/iOS devices remote view anywhere anytime. It is also with functions of motion detection alarm, dual-stream encoding, which is widely used at home, shop, office and other surveillance needed places.

Feature：
【HD 1080P DVR】This 4Channel 1080p surveillance DVR features plug and play, point-to-point raw data, 2.0 Megapixel 1920×1080 Pro HD video transmission. Supports Live View 1080P,Recording & Playback 1080P
【Wide Compatibility】This hybrid DVR recorder supports analog cameras and IP cameras since support with limited compatibility to third-party IP cameras. Supports IP, AHD, analog cameras, CVI, TVI.
【Motion Detection & Instant Alert】When movements are detected, it will be recorded, you will receive email alerts with snapshot upon motion detection or App alert once you set. Easily record and playback on your mobile devices anywhere and anytime.Hard Drive don’t include

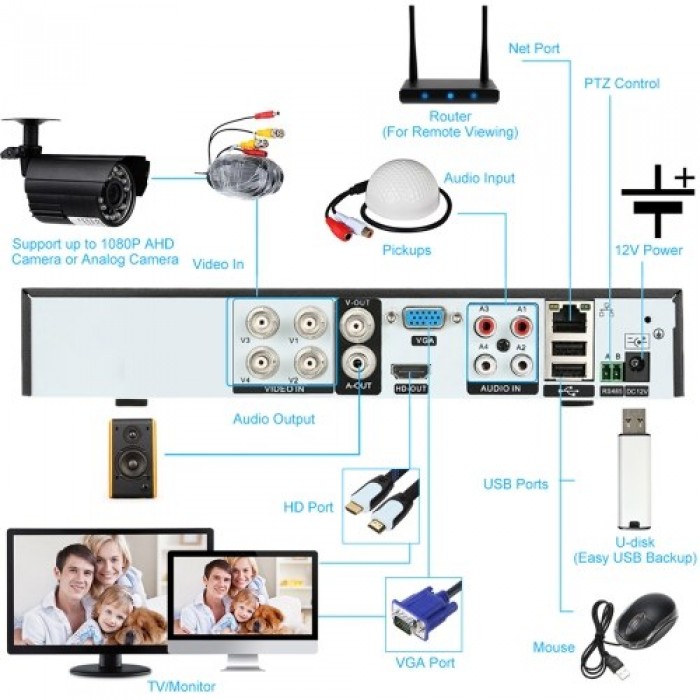

【Plug and Play】This Hybrid DVR transmits video, audio, and controls over single coaxial cable. Utilizes your existing coaxial cable networks, reducing the need to run new cables to your Security System. H.265+ Compression Technology allows video files to be compressed without any noticeable difference in quality.
【Multiple Recording/Playback Modes】The playback feature of this video recorder allows you to know the whole events, replay significant evidence or funny video records. You can quickly search for any event that happened at any time.

Specification:
Operating System: Embedded Linux System
Menu Display: 1/4 Screen
Video Code: H.265+
Main processor: Hi3520D V200
Record Resolution: Encode ability: 4*1080P (5 in 1)
                               Decode ability: 4*1080P (5 in 1)
                               960P/720P

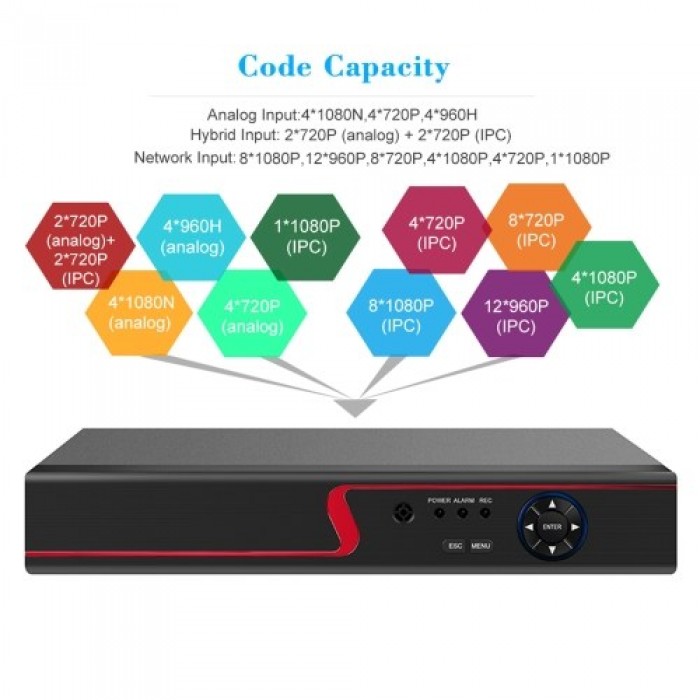

Multi-mode input: Analog: 4*1080P (5 in 1); 4*720P; 4*960P
                              Hybrid: 2*720P (analog)+2*720P (network)
                              Network: 8*1080P; 12*960P; 8*720P; 4*1080P; 4*720P; 1*1080P
Motion detection: Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
VGA Resolution: 1920*1080, 1440*900, 1280*1024, 1024*768, 1280*960
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
Wireless: 3G,WIFI (extend via USB)
Signal System: PAL/NTSC
Frame Rate: 1-30fps (NTSC), 1-25fps (PAL)
HDD Supported: Support Up to 4T (The hard drive disk not included)
OSD Language: English, French, German, Spanish, Italian, Japanese, etc
Power supply: 12V/2A
Item size: 25.4 * 21.2 * 4.1cm /10 * 8.35 * 1.61in (L * W * H)
Item weight: Approx.661g /23.32oz
Package size: 35 * 27.4 * 7.5cm /13.78 * 10.79 * 2.95in (L * W * H)
Package weight: 1037g /36.58oz

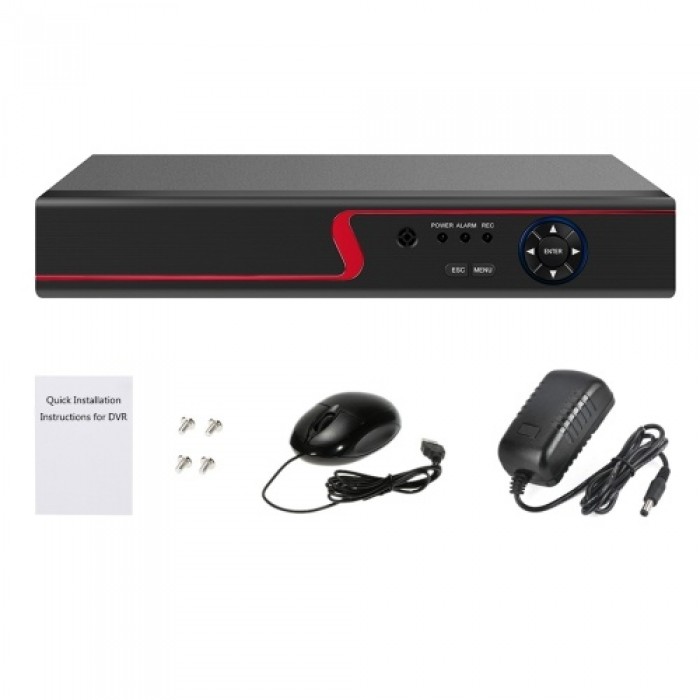

Package list:

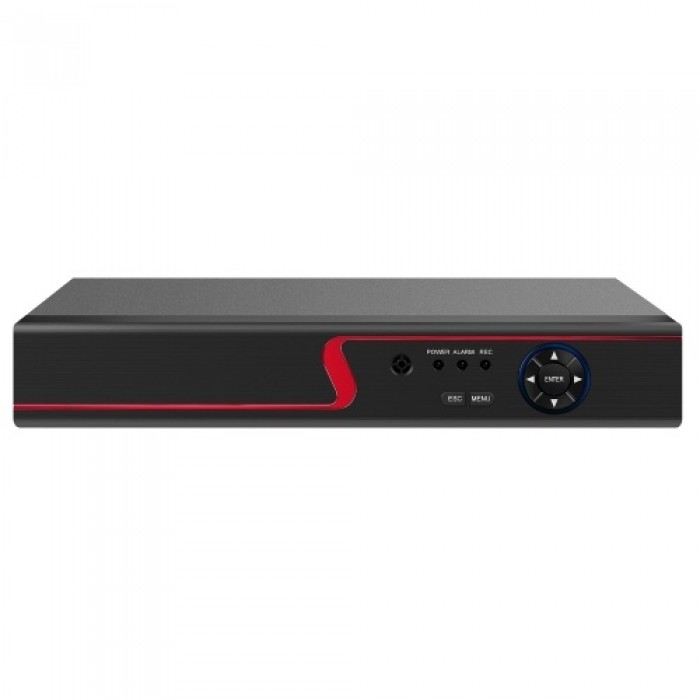

1 * 4CH 1080P/960P/720P DVR Video Recorder (HDD not Included)
1 * Power Adapter
1 * USB Mouse

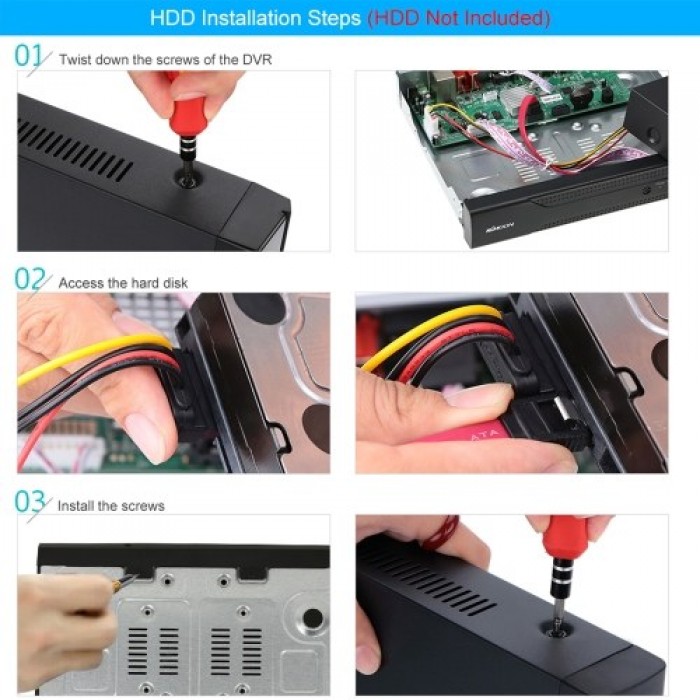

1 * Bag of Screws for HDD Installation
1 * English User Manual
